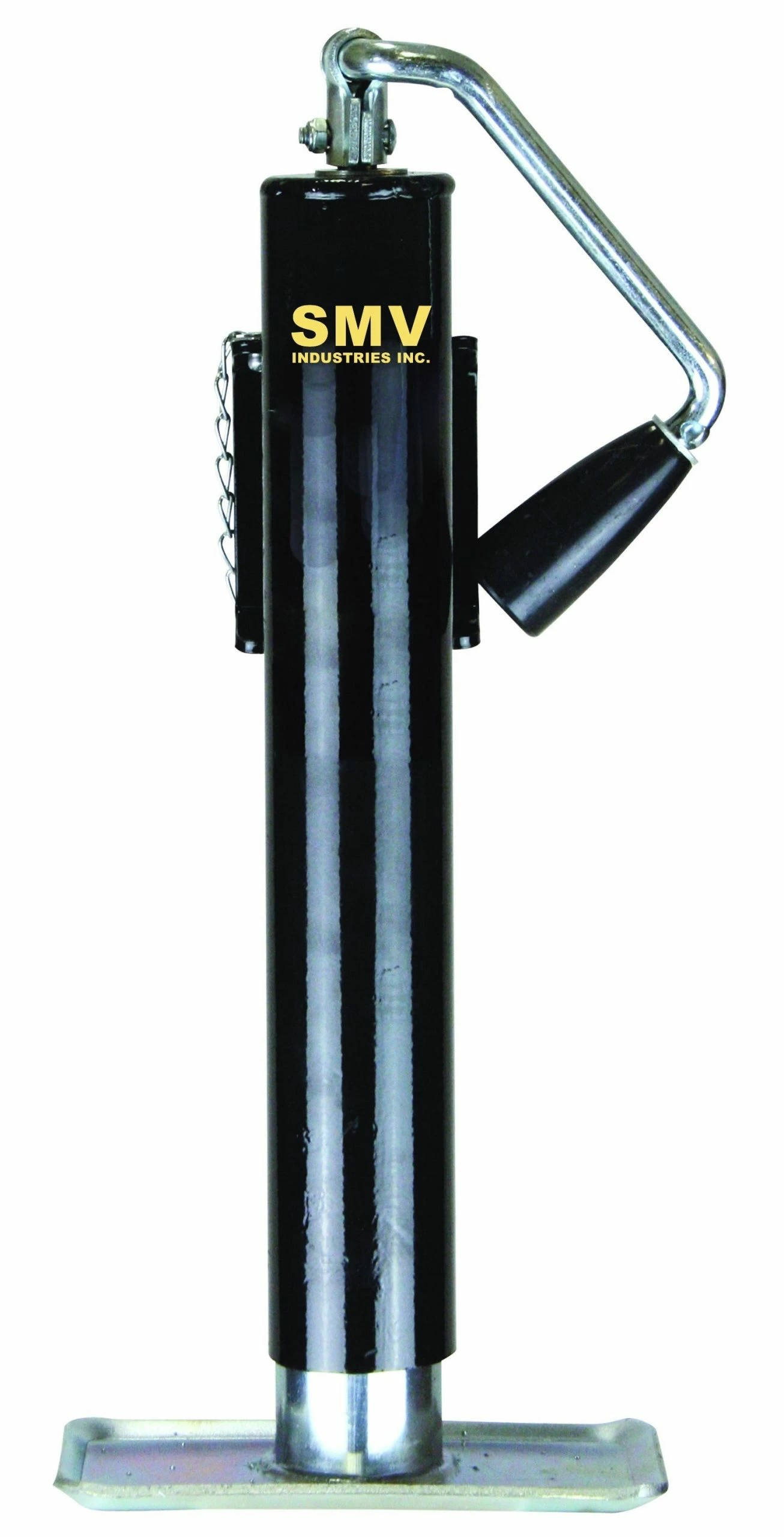

SMV Industries 10 Inch Top Wind Tube Mount Implement Jack 10T – Hardware

Inner & Outer Tubes

Engineered for strength and durability with a tube overlap at extension of 3″ for 10″ travel jacks and 5″ for 15″ travel jacks.

Standard Finish

Zinc chromate on the inner tube and black powder coat or royal zinc finish on the outer tube. Other finish options are available.

Welded Footplate

4″ x 7 1/2″ on 2,250 lb. Jacks, and 6″ x 8″ on 5,000 lb. jacks

Flange Mount

Features single pull pin snap ring mount and flange plate on 2,250 lb. Jacks. Double pull pin bolt on mount and flange plate on 5,000 lb. jacks.

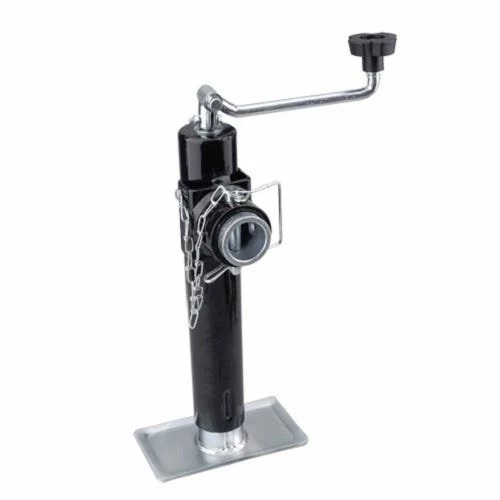

Tube Mount

Features 360 degree seam welded tube with four 90 degree locking positions. Unique double lock hitch pin assembly includes 5/8″ plated pin. Heavy duty 2″ internal mounting tube is included.

Product Features

• 2250 lb. load capacity
• Top Wind Handle
• 11 7/8″ Retacted – 21 7/8″ Extended
