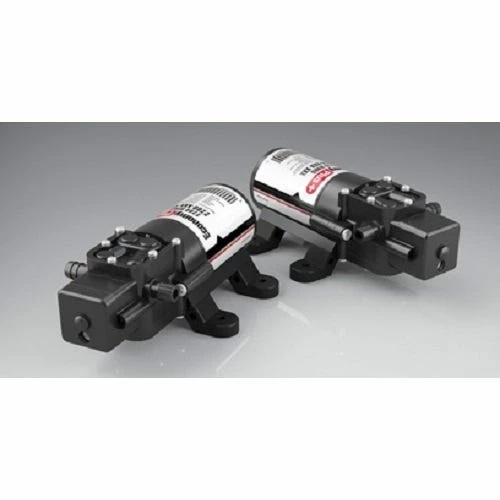

12 Volt Remco 1 GPM Pump – 22401B110ESB – Pumps & Wells

Brand May Vary.

Specifications

Motor Type: 12 VDC permanent magnet, thermally protected, splashproof

Connection:
2200-1: 18 AWG, 9” long
2200-2/2200-3: 18 AWG, 4.5” long with 2-pin connector

Duty Cycle: Intermittent

Materials of Construction

Motor Housing: Nylon 6/6

Pump Housing: Polypropylene

Valves: Viton

Diaphragm: Santoprene

Fasteners: Stainless steel and zinc plated

Pump

Type: 2 chamber positive displacement diaphragm pump, self priming, capable of being run dry

Max Recommended Temperature: 110°F (43°C)

Priming Capabilities:
4 feet (1.2 m) suction lift

Max Pressure: 40 PSI (2.8 bar)

Pressure Demand Switch:
Shut-Off: 40 ±5 PSI (2.8 ±0.3 bar) factory setting
Turn-On: 25 ±5 PSI (1.7 ±0.3 bar)
factory setting

Inlet/Outlet Ports: 3⁄8” hose barb

Weight: 1.25 lbs (.57 kg)
